Mainly produce hydraulic systems and hydraulic components

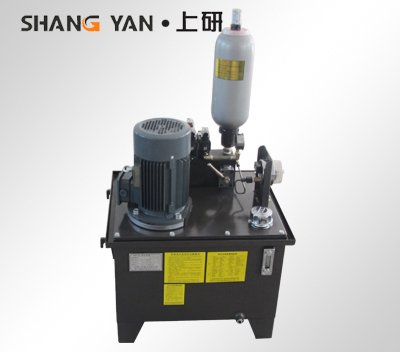

Vacuum electroplating equipment hydraulic system

  • Technical Parameters

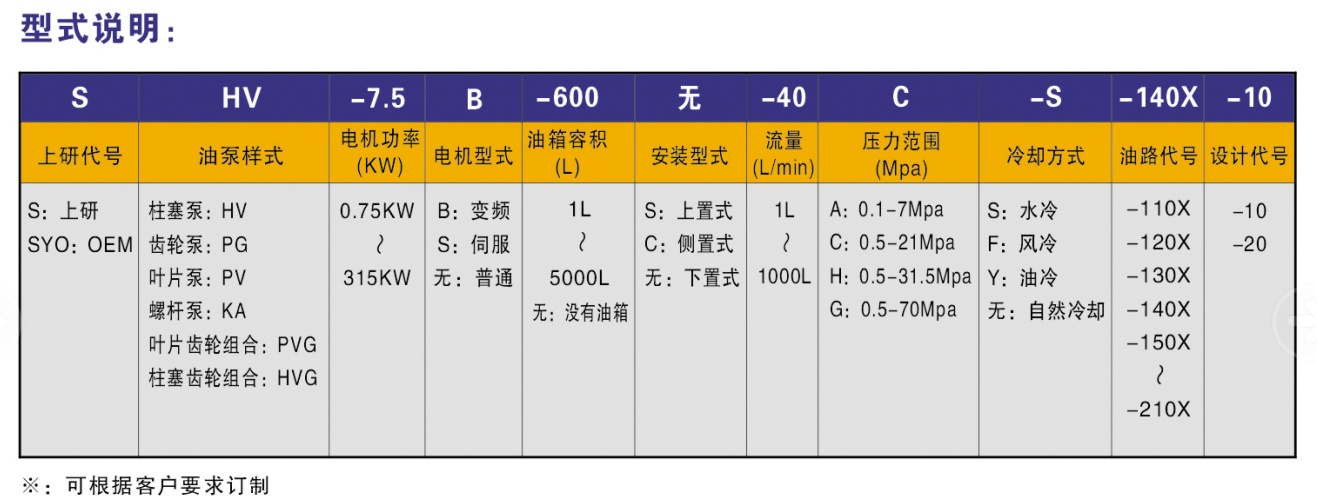

  • Type description
  • System characteristics
  • Industry Application
  • 系統參數
    系統壓力 120 bar
    系統流量 15 L/min
    電機參數
    功率 2.2 kw
    轉數 1450 r/min
    電壓 380 v
    頻率 50 Hz
    油箱參數
    容積 120 L
    材料 Q235
    表面處理 噴塑
  • Feature   
    1. The use of low-noise gear pumps in conjunction with accumulators greatly reduces the noise of the system
    2. The system uses an accumulator and unloading circuit to work together, which greatly reduces the energy consumption of the system and reduces the heat generation of the system
    3. The vertical installation of the motor is adopted, which effectively saves the installation space
  • Application   Industry application
    1. Electroplating equipment
    2. Automated machinery
    3. Professional equipment
